Identity Provider (IdP, RADIUS Server)



eduroam with edu-ID Classic IdP Managed IdP Hosted RADIUS

Do your users have an edu-ID? Give them access to eduroam using edu-ID

Run your own RADIUS infrastructure connected to your user directory Create eduroam user accounts manually. Ideal for institutions with a small user base. Outsource configuration and operation of the RADIUS infrastructure to SWITCH
  • Most secure connection using client certificates (EAP-TLS)
  • No separate eduroam credentials
  • No need to operate RADIUS infrastructure
  • Run by the eduoram Operations Team
  • Full control, no external dependencies
  • Users have instant access
  • Profiles can be provisioned on managed devices
  • Most secure connection using client certificates
  • No user directory and RADIUS needed
  • Works without SWITCH edu-ID
  • User management can be delegated
  • No inhouse RADIUS expertise needed
  • Authenticate against internal user directory
  • Only basic VLAN assignment possible
  • Less visibility on access logs > Admin Portal on the roadmap
  • Inhouse RADIUS expertise needed
  • Security issue: Sensitive credential used out of context
  • eduroam policy compliance needs to be ensured internally
  • Not suitable for bigger organisations
  • Increased effort for user management
  • Provide external access to user directory
  • Deprecated, superseded by ‘eduroam with edu-ID’


'eduroam with edu-ID' IdP

The eduroam consortium operates a RADIUS infrastructure which is registered as a service in the eduGAIN interfederation. User can use their edu-ID to download and install a secure certificate-based eduroam profile.

Organisations on the other hand can decommission their local RADIUS infrastructure and eliminate the risk that user misconfigure their eduroam access or even leak their credentials to untrusty counterparts.

This IdP provides rudimentary VLAN assigment capabilities based on the 'eduPersonAffiliation' attribute with typical values being student, staff, alum or affiliate.

SWITCH encourages institution to consider switching from their self-hosted RADIUS server to this approach. Experience from other federations (UK, Netherlands) has shown that the number of support cases decreases dramatically when using this method in conjunction with the geteduroam app.

Please get in contact with us if you would like to enable 'eduroam with edu-ID'. This IdP can run in parallel with an already existing classic IdP, so you can do initial tests with it while still maintaining your proven RADIUS infrastructure. You might also want to consider using this method for your students, while keeping the on-prem IdP for your staff.

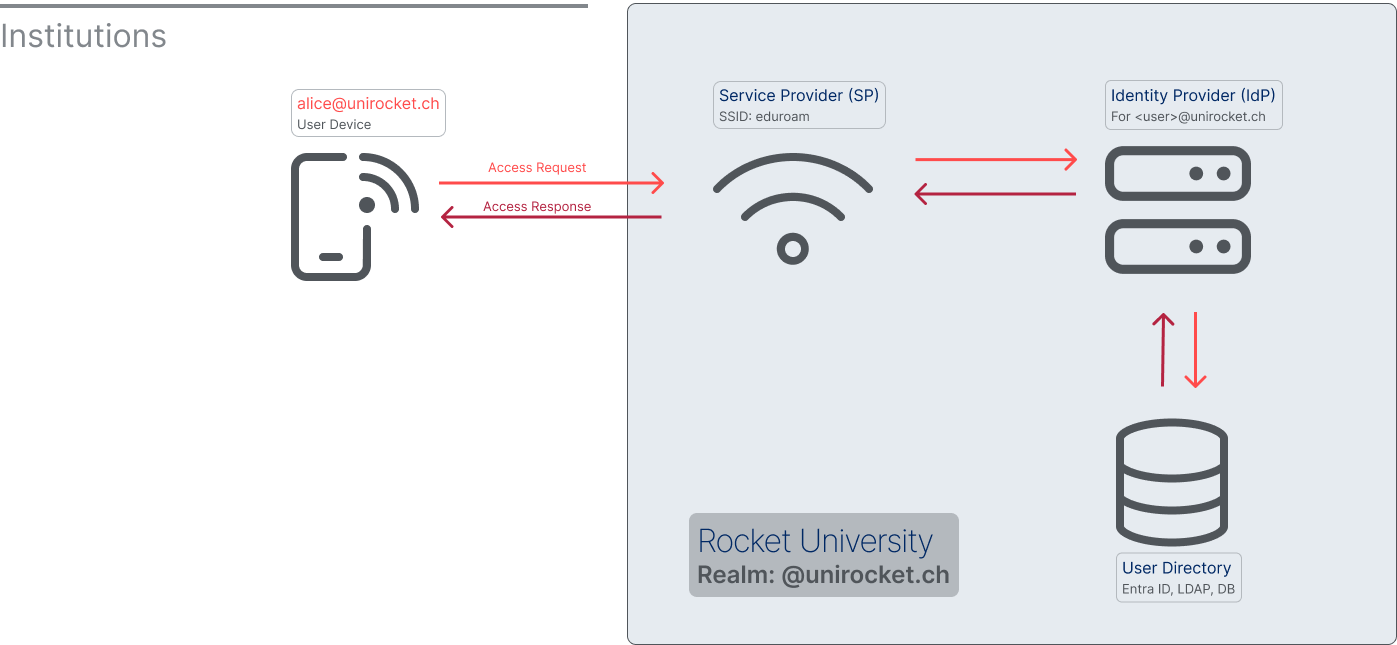

Classic IdP


As the name implies, the classic IdP has been - and still is - the preferred method for authenticating eduroam users for many years.

In this scenario, the institution is operating its own RADIUS infrastructure. When an authentication requests arrive, the RADIUS queries the local user directory (LDAP, AD) to decide if the provided credentials are valid and the user can be accepted.

Running a classic IdP has the advantage that users don't need to be created manually, they already exist in the user directory. Additionally, a fine-grained and flexible VLAN assignment based on specific user attributes can be achieved this way.

For additional security, it is strongly recommended to use a separate eduroam password and not the one that is being used to access other internal services (Intranet, Mailbox, LMS).

With the option to deploy eduroam profiles using the SWITCH edu-ID and the raise of the Zero Trust Architecture - which is in contrast to permissions handling using VLANs -  the need to manage a RADIUS infrastructure on campus might dimish over time. Especially if eduroam is the only reason to operate a local RADIUS server a migration to 'eduroam with edu-ID' might become an attractive option.

Managed IdP


The managed IdP is suitable for smaller institutions that don't want to operate their own RADIUS server and are not providing SWITCH edu-IDs to their users.

User are being manually managed by the administrators of the organisation in the web interface. There is an additional option to create multiple user at once via batch upload, but we currently enforce a limit of 100 users per institution.

Once the users are successfully created, they can be invited to download an eduroam profile for installation on their devices.
